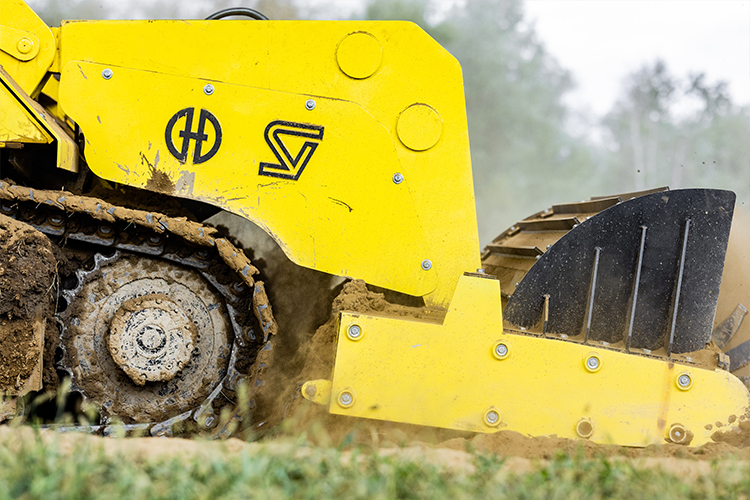

Minesweeper RM-KA-02A
HUMANITARIAN MINE SWEEPING
Minesweeper RM-KA-02A
RM-KA-02A is a radio-controlled demining machine designed for mechanical clearing mine contaminated areas by removing all types of vegetation (low, medium-sized and tall plants), treating the soil categories II–V (by splitting, digging and grinding) and destroying all types of antipersonnel and antitank mines (by detonating, splitting and grinding).
Technical data
Overall length:
5315 mm
Maximum width:
2500 mm
Cleaning width:
2000 mm
Height:
1800 mm
Cleaning depth:
300+ mm
Surface pressure:
0.64 kg/cm2
Total weight:
14.5 tona
Engine type:
Scania DS1144
Power:
298 kW
Number of chains:
36
Rotation speed:
do 600 rpm
Working speed:
0.3 to 1.2 kmph
Transport speed:
5 km/h
Longitudinal slope:
35°
Transversal slope:
30°
TNT Resistance:
7 kg
